SPECIFICATIONS

Brand Name: XIAOMI

Capacity: 5L

Certification: None

Choice: yes

Coating material: High temperature resistant coating

Hign-concerned Chemical: None

Housing Material: Galvanized sheet

Material of pot basket and frying plate: Cold rolled sheet

Model Number: MAF11

Origin: Mainland China

Temperature range: 80-200℃

Voltage: 220V

Wattage: 1200W

I. Core Design and Parameters

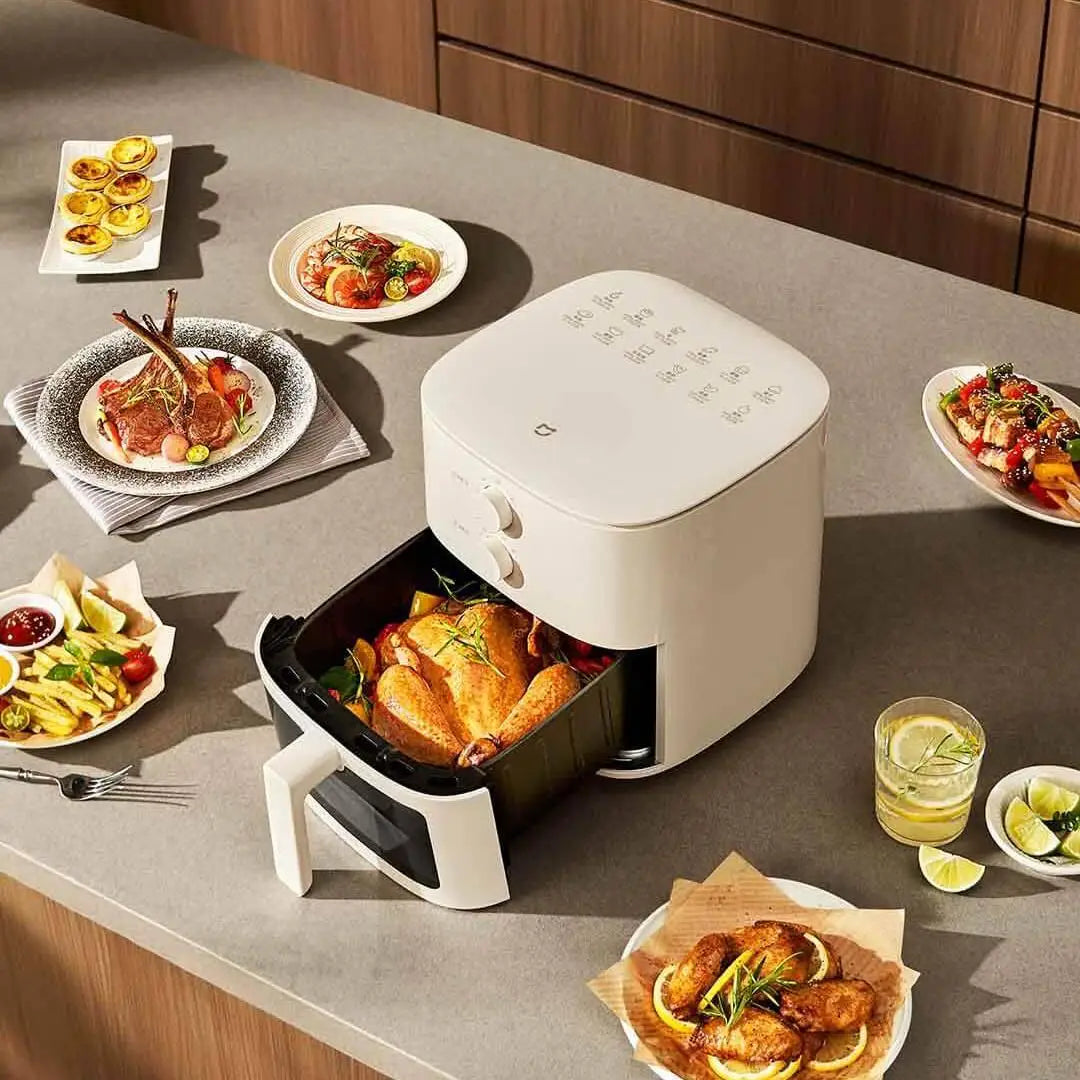

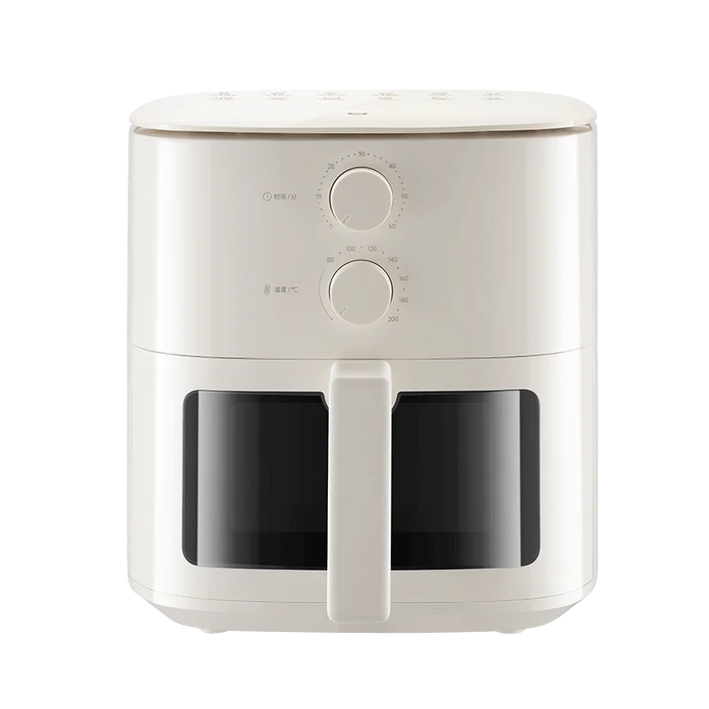

• Capacity and Dimensions: It has a nominal capacity of 5L (with an actual capacity error of ±5%). The basket dimensions are 215×215×38.5mm, which can hold large ingredients like a whole chicken. The product measures 368×279×298mm and weighs 4kg net, with a minimalist off-white appearance that fits modern kitchen styles.

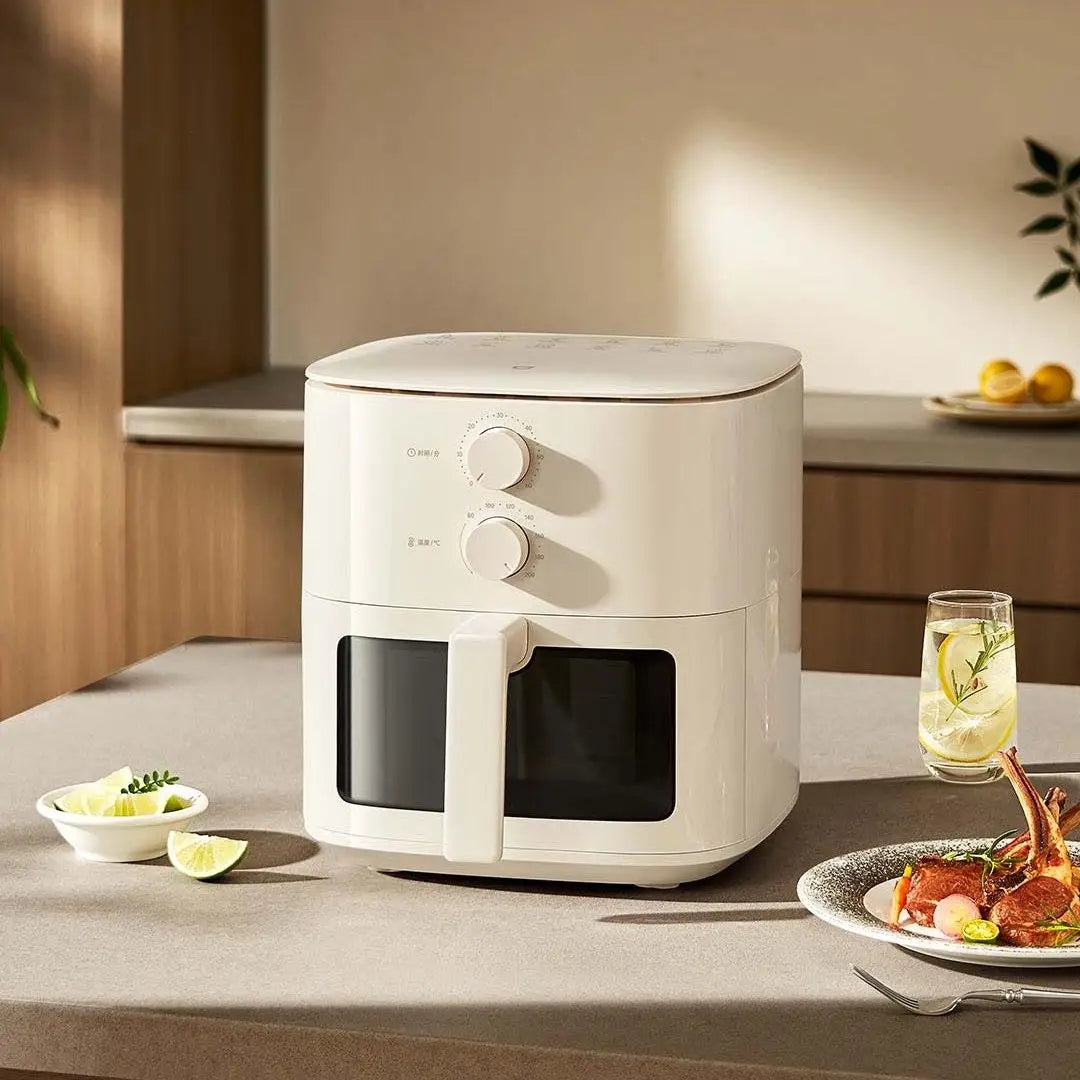

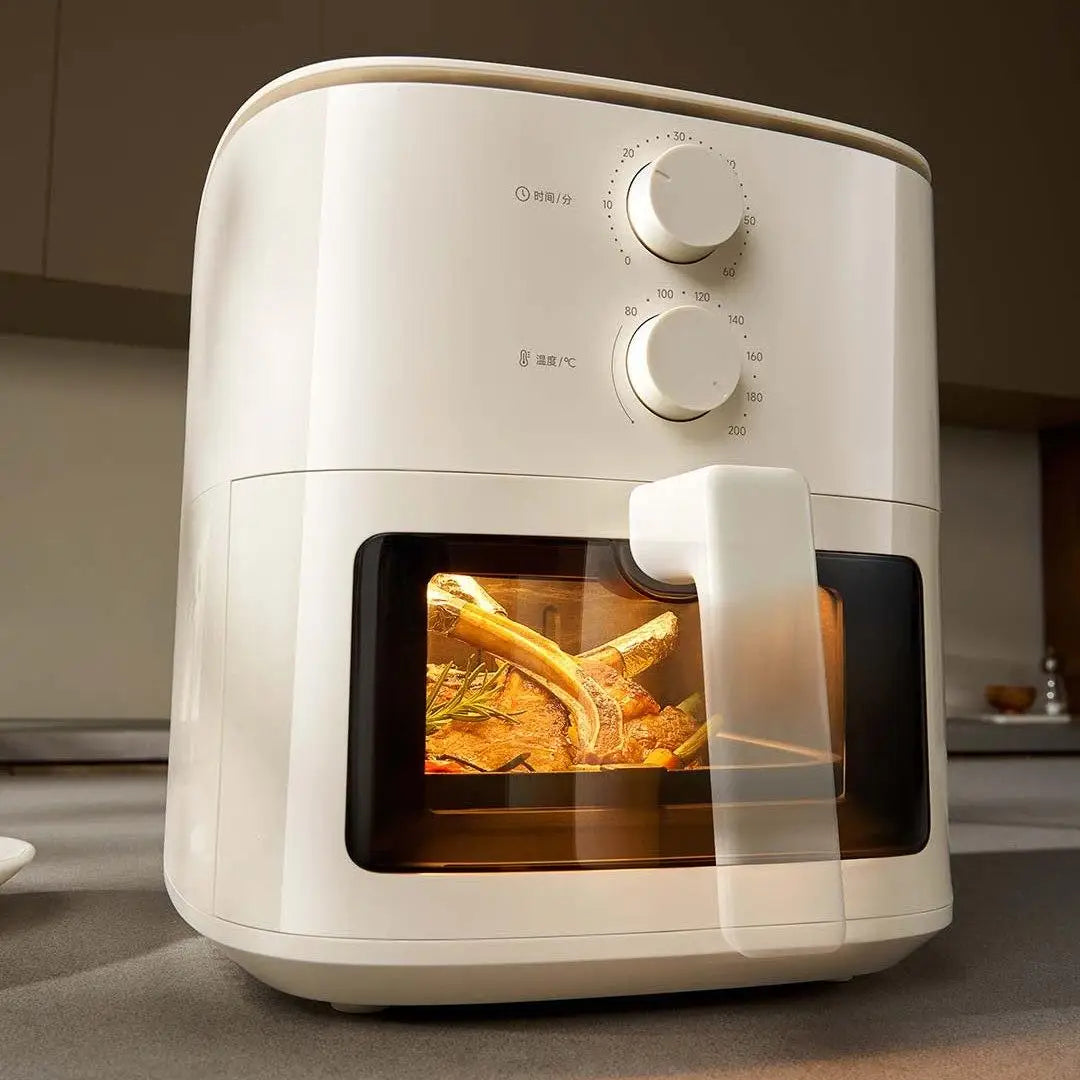

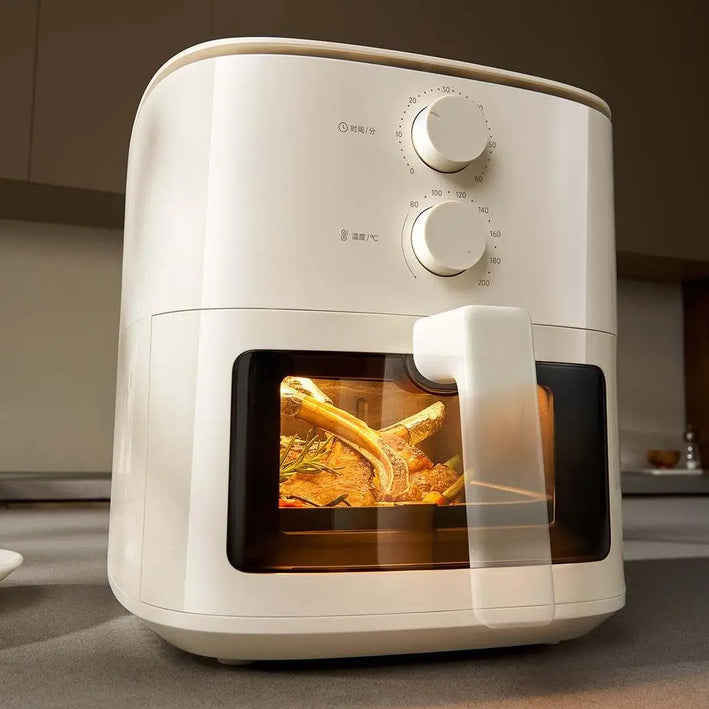

• Visual Window: Equipped with a 6.2-inch transparent visual window, its visible area is 76% larger than that of the 4L model in the same brand. It allows for real-time observation of food status during cooking, avoiding heat loss from frequent lid opening—especially useful for monitoring baking or browning of ingredients.

• Safety and Protection:

  • The pull-out basket features automatic power-off protection; a top protective net prevents accidental burns, and a rear heat dissipation port extends service life.

  • The metal inner cavity is made of galvanized sheet, coated with a high-temperature resistant coating for easy cleaning and reduced odor retention. The fry basket and pot basket are made of aluminum-plated sheet with a food-grade non-stick coating, and the fry plate’s silicone pad is a high-temperature resistant food-grade material (silicone 50°), ensuring cooking safety.

II. Core Technologies and Functions

1. Heating System:

   • Adopts 1200W light wave tube far-infrared heating technology, combined with dual-wing spiral fans and a 3D cyclone basket, forming 360° circular hot air circulation—enabling even baking without the need to flip ingredients. Test data shows that compared to traditional 1500W stainless steel tube heating, its efficiency is improved by 18%, allowing for quick penetration of ingredients to achieve a crispy exterior and tender interior.

   • The micro-steam tender roasting function rapidly generates water vapor through the water injection area at the bottom of the basket, forming a water film on the food surface to effectively lock in juices. It is particularly suitable for roasting meats like chicken wings and steaks, preventing dryness.

2. Precise Temperature Control and Operation:

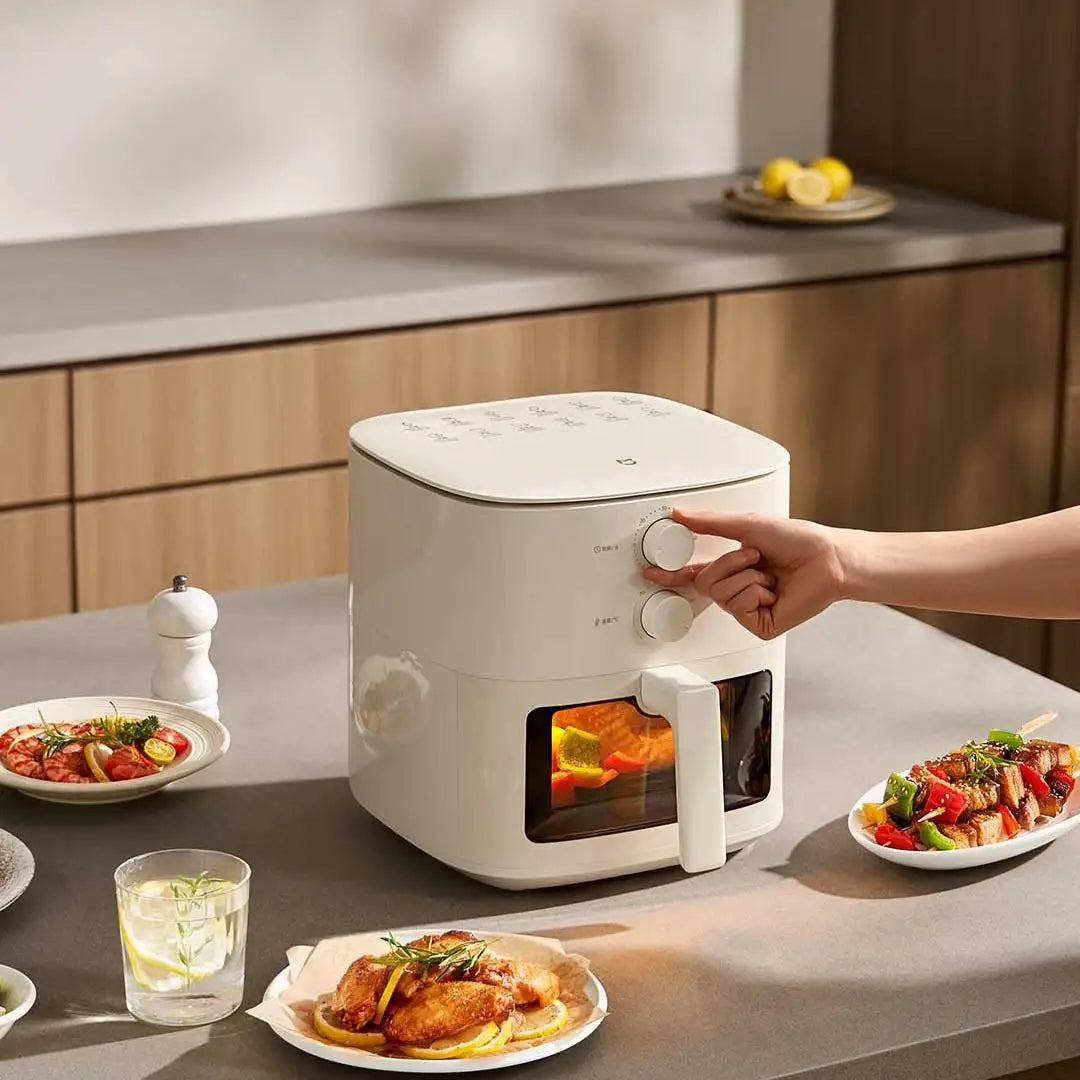

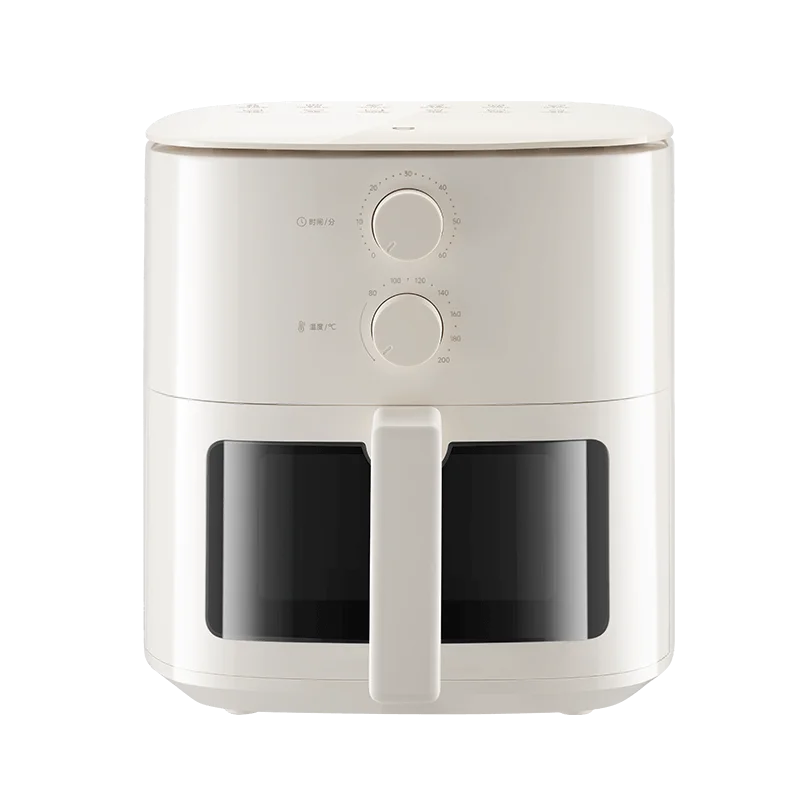

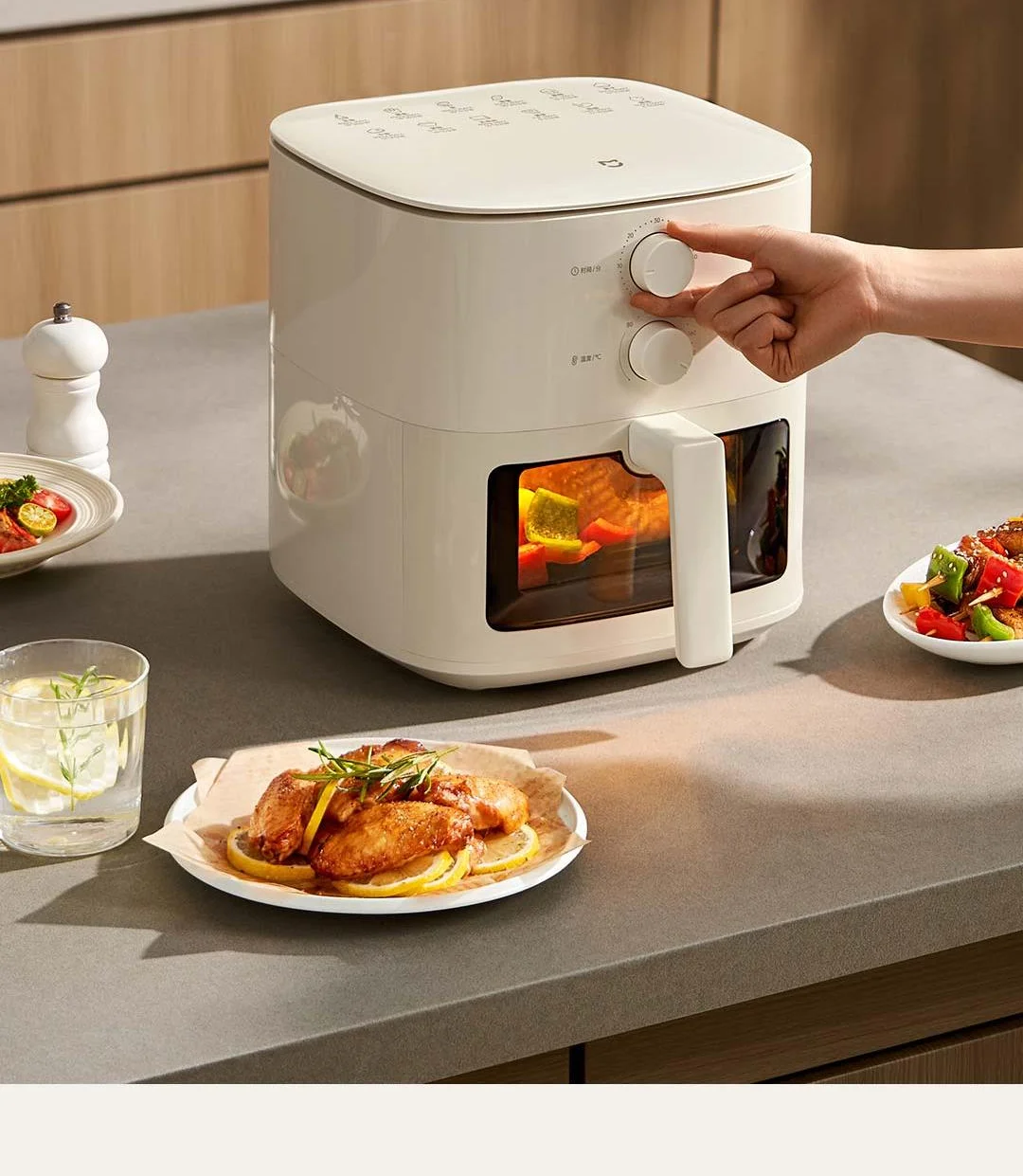

   • Dual knobs for independent adjustment of temperature (80-200℃) and time (0-60 minutes). The top features 12 preset common recipes (such as chicken wings, fries, egg tarts) with reference parameters, making it easy for beginners to use.

   • It is stated to cook chicken wings in 15 minutes; in practice, it is recommended to adjust flexibly according to ingredient thickness (e.g., gently shaking the basket midway for thicker ingredients).

3. User-Friendly Design:

   • The fry basket and pot basket are detachable for direct rinsing, and the metal inner cavity resists oil residue, making daily cleaning effortless.

   • The power cord is approximately 0.8 meters long (non-detachable); it is recommended to keep a distance of over 30cm from walls to ensure heat dissipation.

III. User Experience and Notes

• Practical Performance:

  • Most users report that it efficiently cooks dishes like chicken wings, fries, and sweet potatoes, with the 5L large capacity suitable for family gatherings. The visual window and flip-free design enhance convenience, though some users note that the back of food may brown slightly less—adjustments based on ingredient characteristics are suggested (e.g., flipping chicken wings once during roasting).

  • The micro-steam tender roasting technology is frequently mentioned, significantly improving the texture of roasted meats by locking in moisture, avoiding the dryness of traditional air fryers.

• Material and Durability:

  • The metal inner cavity is high-temperature resistant and corrosion-resistant, with no easy deformation after long-term use. The food-grade non-stick coating is wear-resistant and easy to clean, but avoid scratching with sharp tools.

IV. Summary
